ISO14001 On Grid Solar Power System 30KW Solar Complete Set

30KW On Grid Solar Power System More Benefits Commercial Rooftop

Description

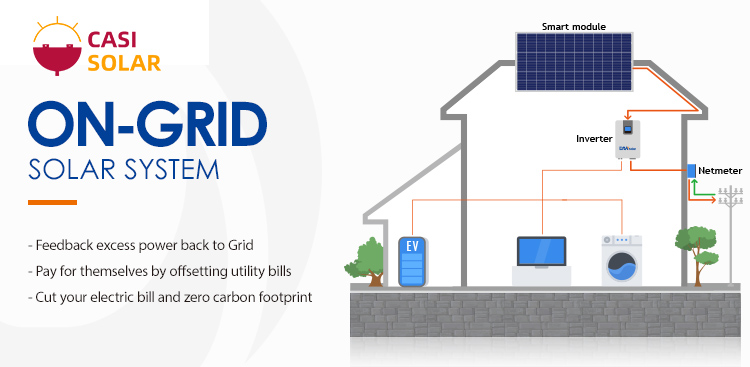

Solar power systems consist mainly of solar PV panels, PV controllers, inverters, combiner box and AC/DC inverters as their main components. The core components of which are the PV panels and the controller. The role of each component in the system is

PV panels: photoelectric conversion.

Controller: Most of the controllers currently used in China are simply designed, and intelligent controllers are only used for communication systems and larger photovoltaic power stations.

Inverter: converts the direct current emitted by the PV module into alternating current.

Combiner box: And then a number of photovoltaic series are connected in parallel to the photovoltaic lightning protection combiner box.

AC/DC inverter: As its function is AC/DC conversion, the most important index of this component is reliability and conversion efficiency.

Advantages

• System Type: On Grid Solar Power System
• The perfect combination of solar modules and buildings, both for power generation and as building materials and decorative materials, making full use of material resources to play a variety of functions, not only to reduce construction costs, and also to improve the technological content of buildings, increasing the "selling point".
• Full installation technical guidance
• The energy generated is fed into the grid, and the grid is used as an energy storage device, eliminating the need for batteries, which reduces the investment in construction by up to 35%-45% compared to independent solar PV systems, thus reducing the cost of power generation significantly. The elimination of the battery avoids secondary pollution of the battery and increases the average failure-free time of the system.

Solar Panels

• System Type: On Grid Solar Power System
• Power: 400w
• Open circuit voltage: 50.3V
• Short circuit current: 10.32A
• Maximum power voltage: 42.07V
• Maximum power current: 9.63A
• Dimension: 2008*1002*35mm
• Weight: 22.4kg

On grid solar inverter

• System Type: On Grid Solar Power System
• Both single and three phase, from 1kw~60kw
• Smart LCD setting function
• 99% maximum efficiency
• IP65 protection class

AC combiner box

• System Type: On Grid Solar Power System
• Include FUSE, SPD, leakage, breaker etc.
• Porous heat dissipation, lower temperature, safe to use

DC combiner box

• System Type: On Grid Solar Power System
• Multi-hole ventilation to reduce the temperature inside the box
• Color: STD in black, red available.

Solar mounting system

• System Type: On Grid Solar Power System
• Residential Roofing (Pitched Roofs)
• Flat/pitched roof, soil/cement ground installation

Accessories

• System Type: On Grid Solar Power System
• PV Cable: 4mm²/6mm²
• AC Cable
• DC Switch
• AC Breaker

30KW On Grid Solar Power System

30KW Solar Complete Set price

30 kw solar panel price on grid

ISO14001 On Grid Solar Power System 30KW Solar Complete Set Images
